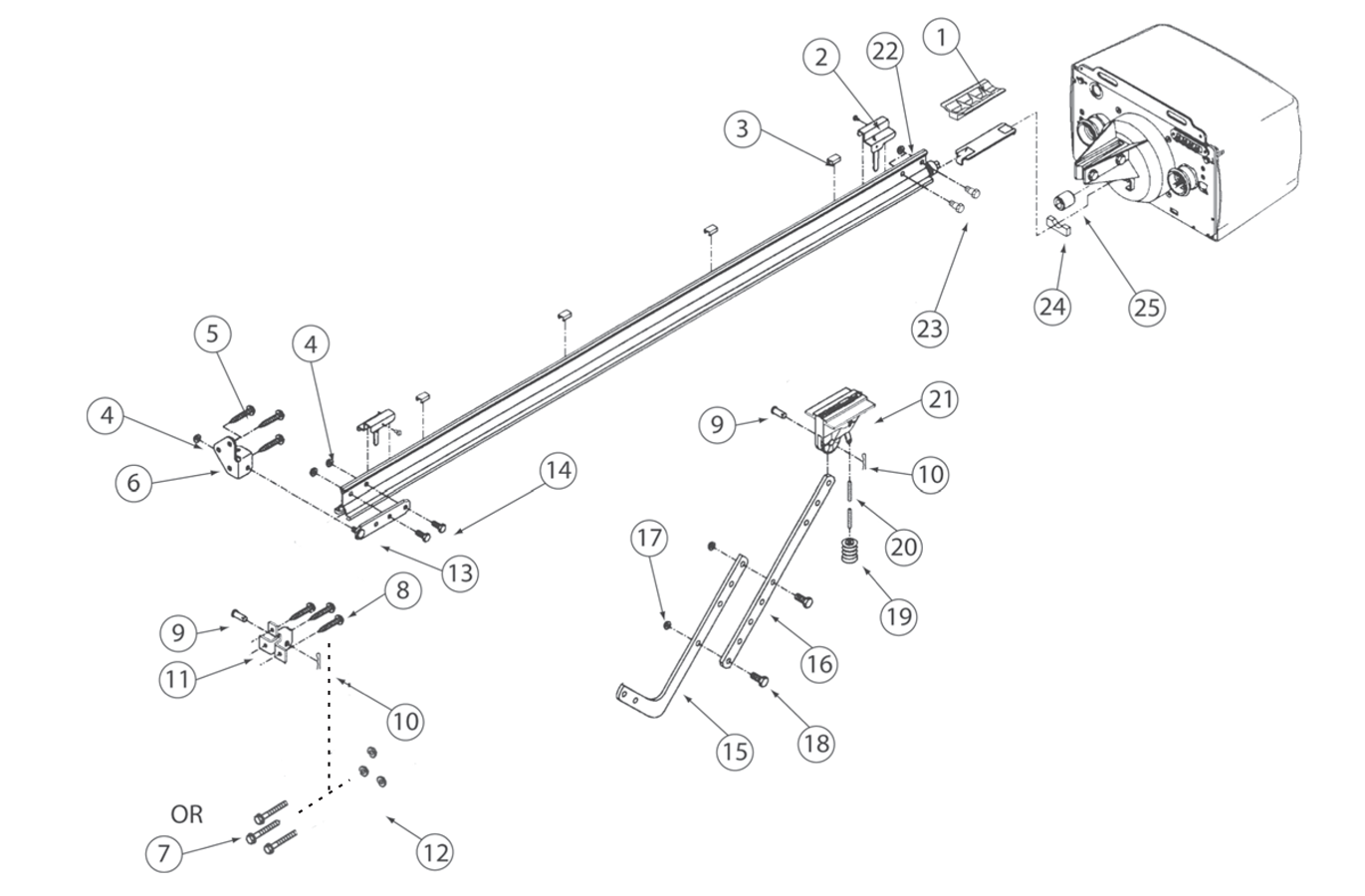

Image Map 930 & 950 Rail Assembly
Hover over each number on the image below to see part information and get a link to the part's detail page.
Use the image below to find the right part and get more information about it in the table at the bottom of the page.
| Key | Part # | Description |
|---|---|---|
| NS | 32658RS | Rail & Screw (Complete 3 pc Assy) (Discontinued) |
| 1 | 35372AS | Carriage Stop |
| 2 | 20113RS | Limit Switch |
| 3 | 24222AS | Wire Clip |
| 6 | 35421AS | Header Bracket |
| 11 | 19792A04S | Door Bracket |
| 13 | 22766R04S | Rail Strap |
| 15 | 26013DS | Curved Door Arm |
| 16 | 26012SS | Straight Door Arm |
| 19 | 35227A | Release Knob |
| 20 | 21123FS | Emergency Release Cord |
| 21 | 36179RS | Carriage Assembly with Magnet |
| 24 | 30322AS | Bumper, Adhesive |
| 25 | 30257TS | Couple Assembly, Tube |
| NS | 36297RS | Rail Washer Replacement Kit (Discontinued) |
